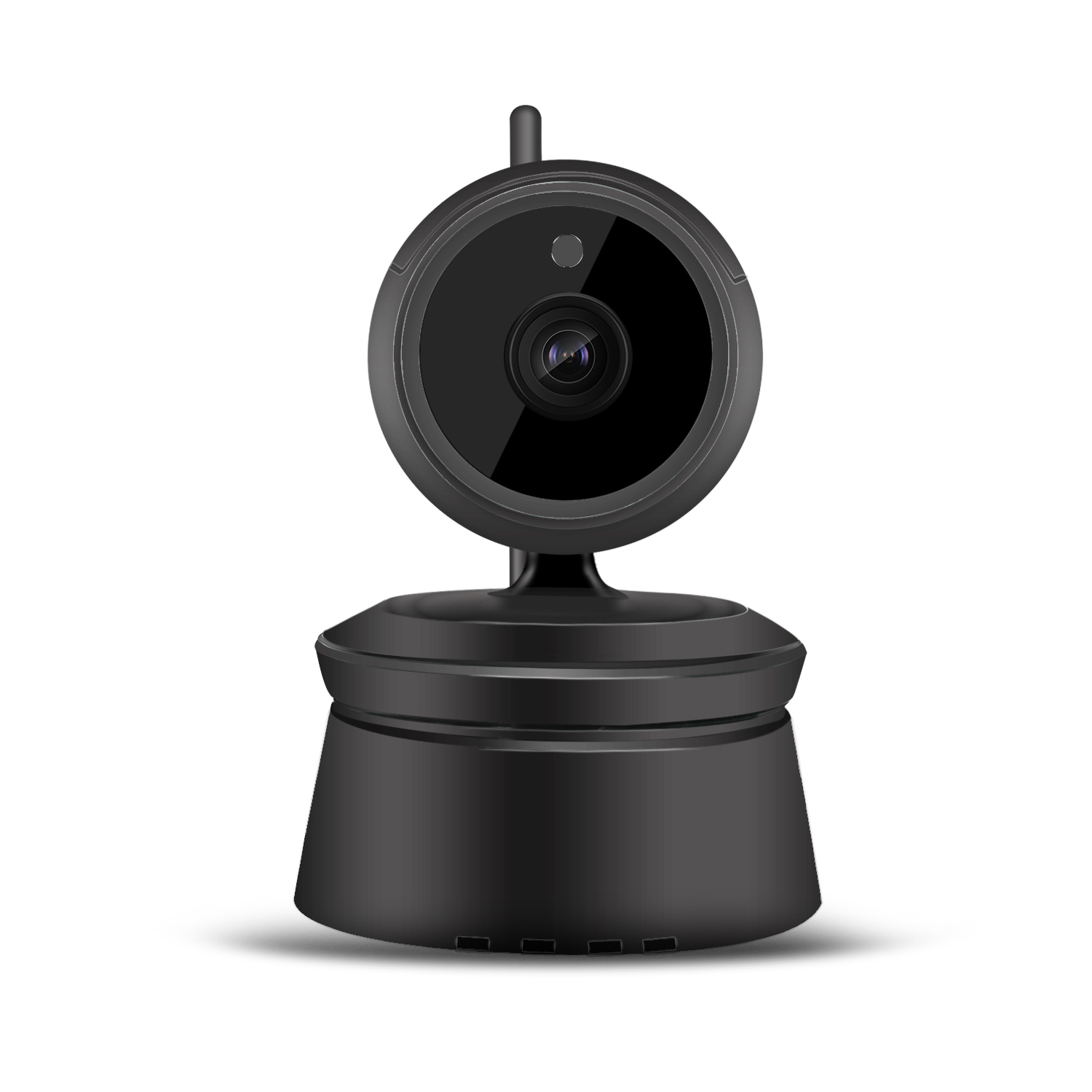

| Product name: | P2P network HD video camera |
| Product model: | IPCM0041 |
| Technical parameter | |
| Processor: | GM8135S+SC2135 |
| Platform: | 163eye.cc |
| Operating system: | Embedded LINUX operating system |
| Image sensor: | 1/3" HD CMOS 2 megapixel CMOS sensor |
| Video standard: | NTSC PAL |
| Video format: | HD(1920*1080P)，VGA(640*480P)，QVGA(320*240P) |
| Video encoding: | H.264 |
| Video frame rate: | 1-30 fps |
| Video mode: | Manual recording, timing recording, alarming recording |
| Video playback mode: | Mobile APP + PC client |
| Audio input and output: | Input: built-in 38DB microphone; output: built-in 8Ω 2W speaker |
| Built in lens: | 3.6MM (standard), optional |
| IR night vision effect: | Photoresistance sensor switch, IR LEDs, IR distance 10m(IR-CUT automatic switching) |
| Focusing method: | Manual |
| Minimum illumination: | 0.1Lux/F1.2 |
| PTZ control: | Horizontal rotation 355 degrees, vertical rotation 100 degrees |
| Local storage | Support inserted 128GB MicroSD card, support 24 hours of recording or alarming recording |
| Support multiple protocols: | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP、ONVIF、RTSP |
| Wifi: | 3DB antenna, support IEEE 802.11b/g/n |
| Image rotation: | Mirror/Inversion |
| Video control: | Support |
| Motion detection: | Support |
| Alarm action: | The alarm bell /Email/ mobile APP push |
| Firmware upgrade: | Remote upgrade can be through the network |

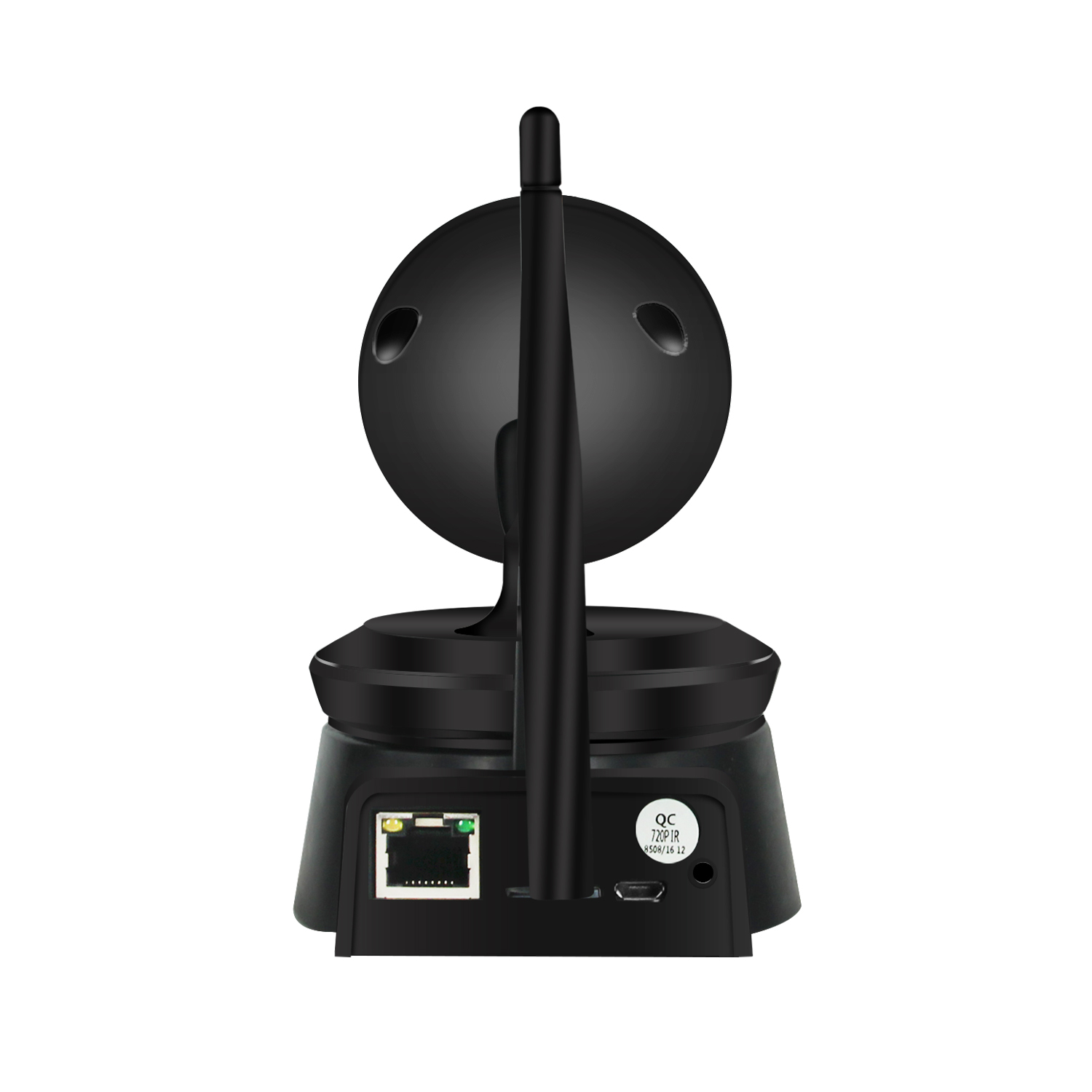

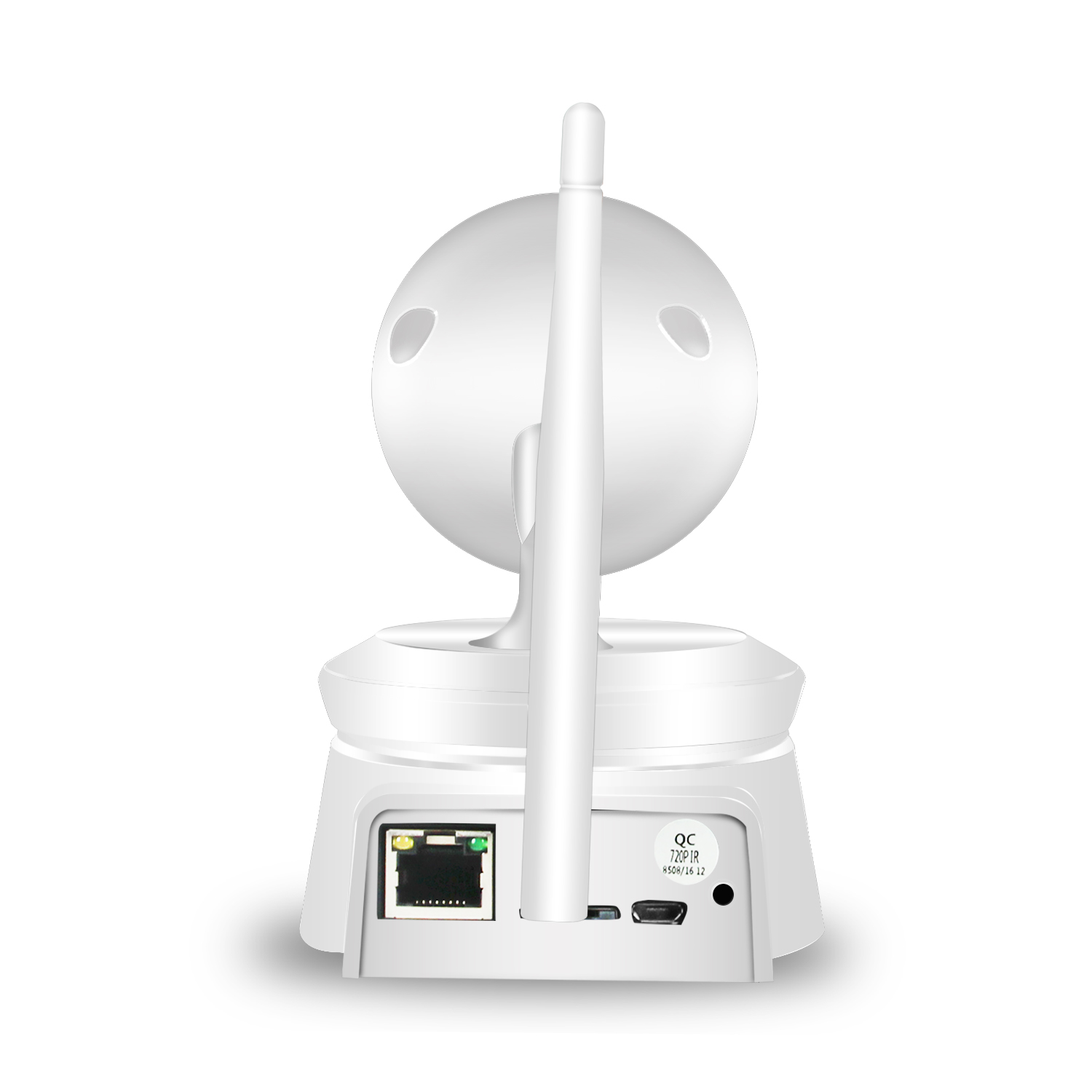

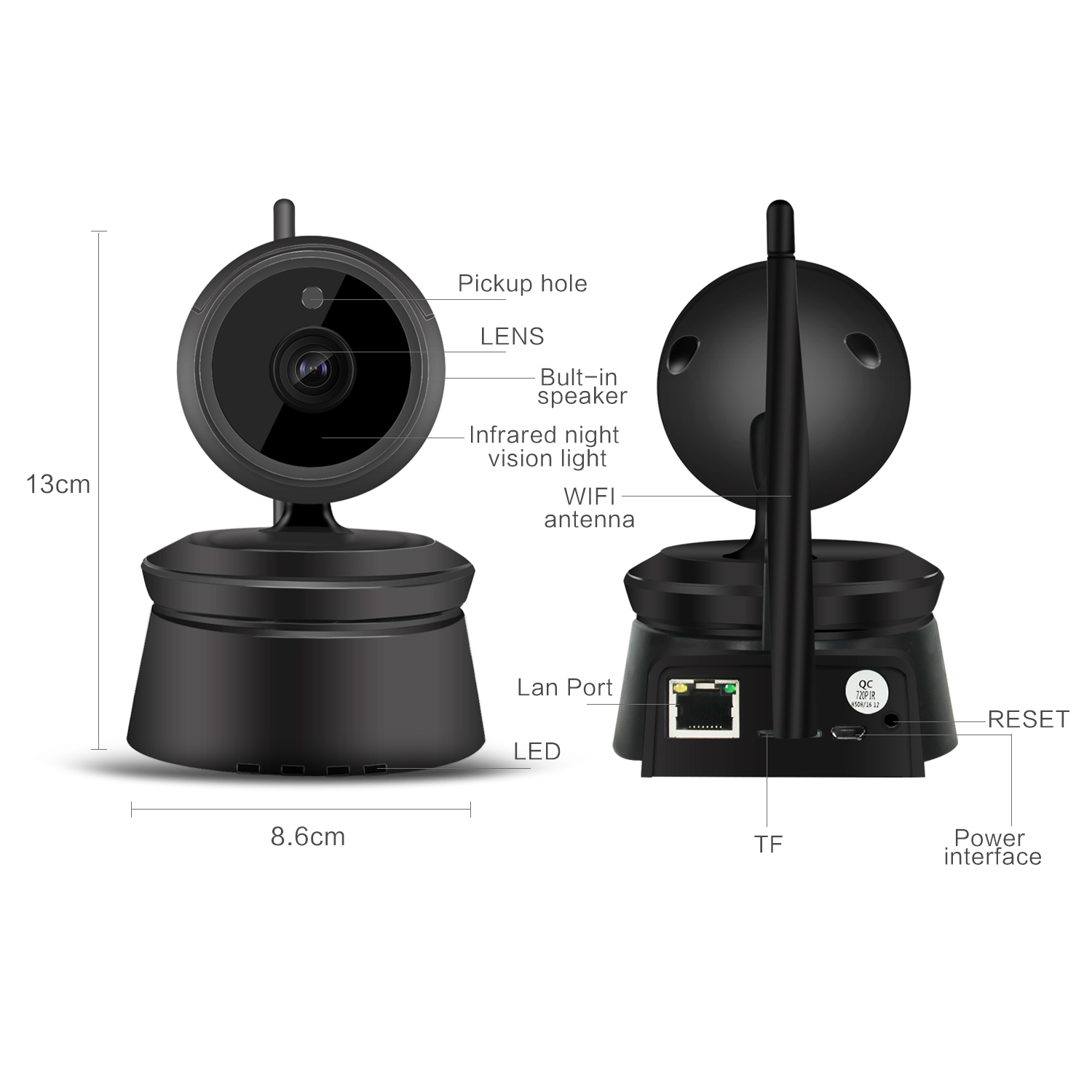

| System interface: | 1 MICRO USB interface、1 10/100M adaptive、1 TF interface |
| Supply voltage: | 5V 1.6A |
| Working temperature: | 0℃~55℃ |
| Applicable scenarios: | Indoor |
| Product size: | 8.6*11*13cm |
| Packing size: | 16*15.5*12cm |
| Net weight： | 232g |
| Gross weight/pc： | 441g |

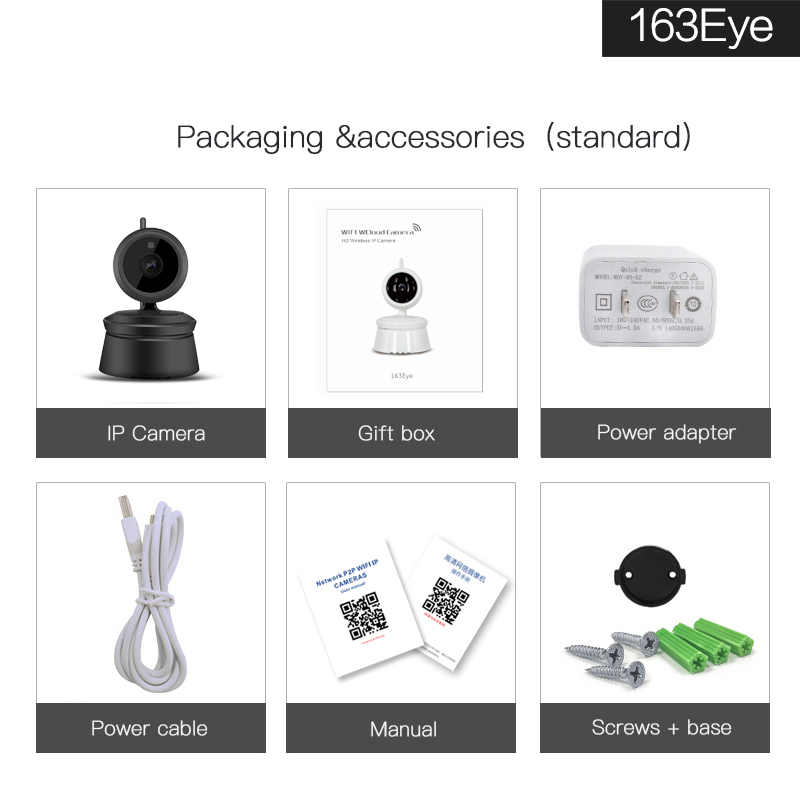

| Packaging and accessories: | 1 Color box |
| 2 Inner support | |
| 3 Power supply | |
| 4 Screw package | |
| 5 Instructions | |
| 7 Wall fixed tray |
