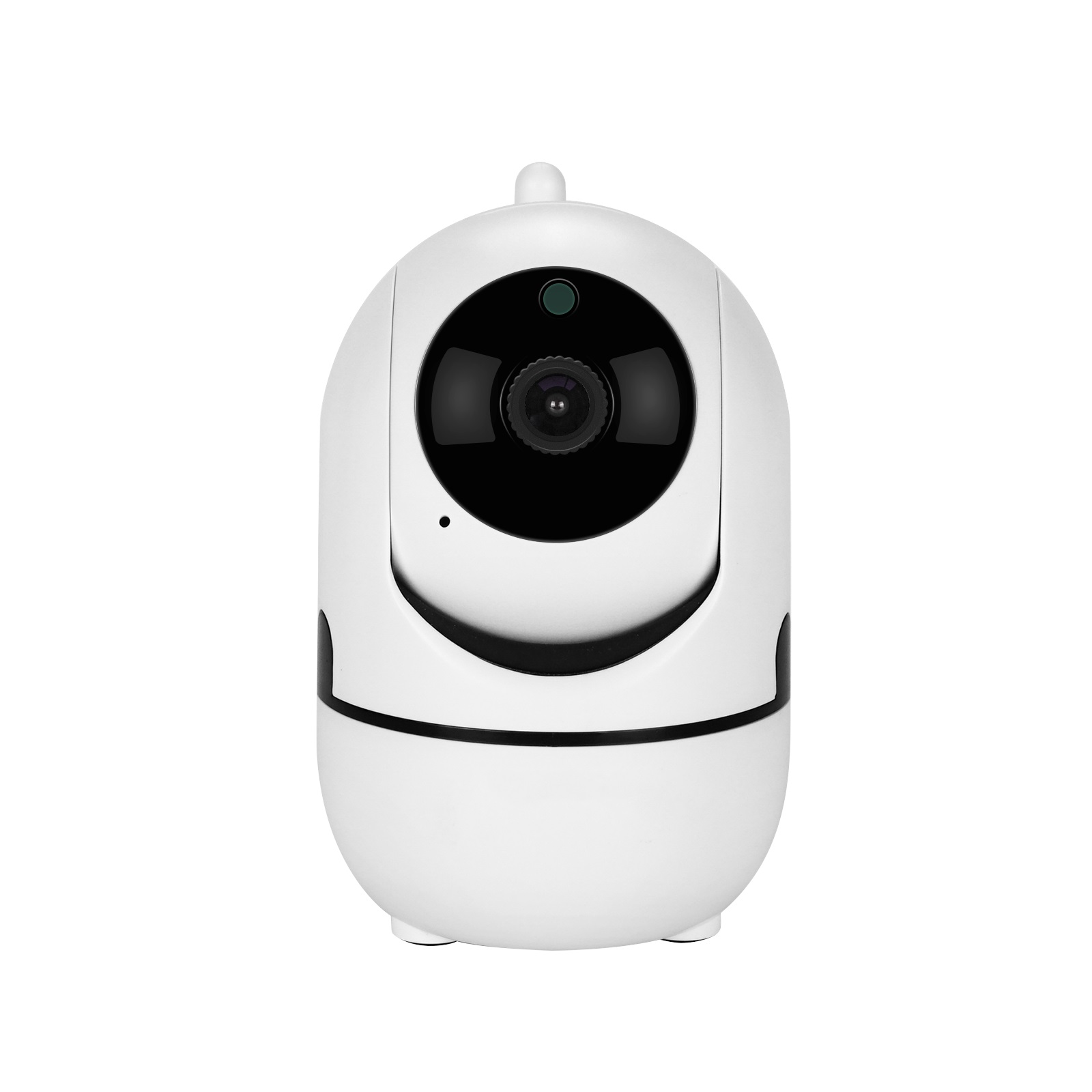

Camera

Main Processor

IPCM0047

Operation System

Embedded LINUX OS system

Video

Image Sensor

2.0MP CMOS

Video Compression

H.264

Video system

PAL、NTSC

Display Resolution

1280*720/640*480/320*180

Video Resolution

1280*720/640*480

Motion detection

Yes

low illumination

0.1LUX/F1.2

picture Capture

Yes

Video Flip

Yes

Audio

Audio Coding standard

amr

Audio input

YES

Audio output

YES

Record management

Record Mode

Manual record, motion detection record, scheduled record, alarm record,

Video storage

TF Card

playback, back up

Yes

Alarm

Alarm input

/

motion detection

Video Push、Alarm recording、screen shot capture ,sending Email

Network

Wired Network Interface

1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port

WIFI

802.11b/g/n

Stream

Three Stream

Network Protocol

Support TCP/IP、RTSP、ONVIF, etc

Sever

Smart Cloud Sever

WIFI connection

YES

Others

IR-CUT

YES

TF Card

YES

WIFI

YES

433MHz

/

GPIO

/

Power supply

DC 5V 2A

Power consumption

10W

Working Condition

Working Temperature

－45℃－＋55℃

Working Humidity

10%－90%

General

Camera light

6 pcs IR leds

Lens

3.6MM

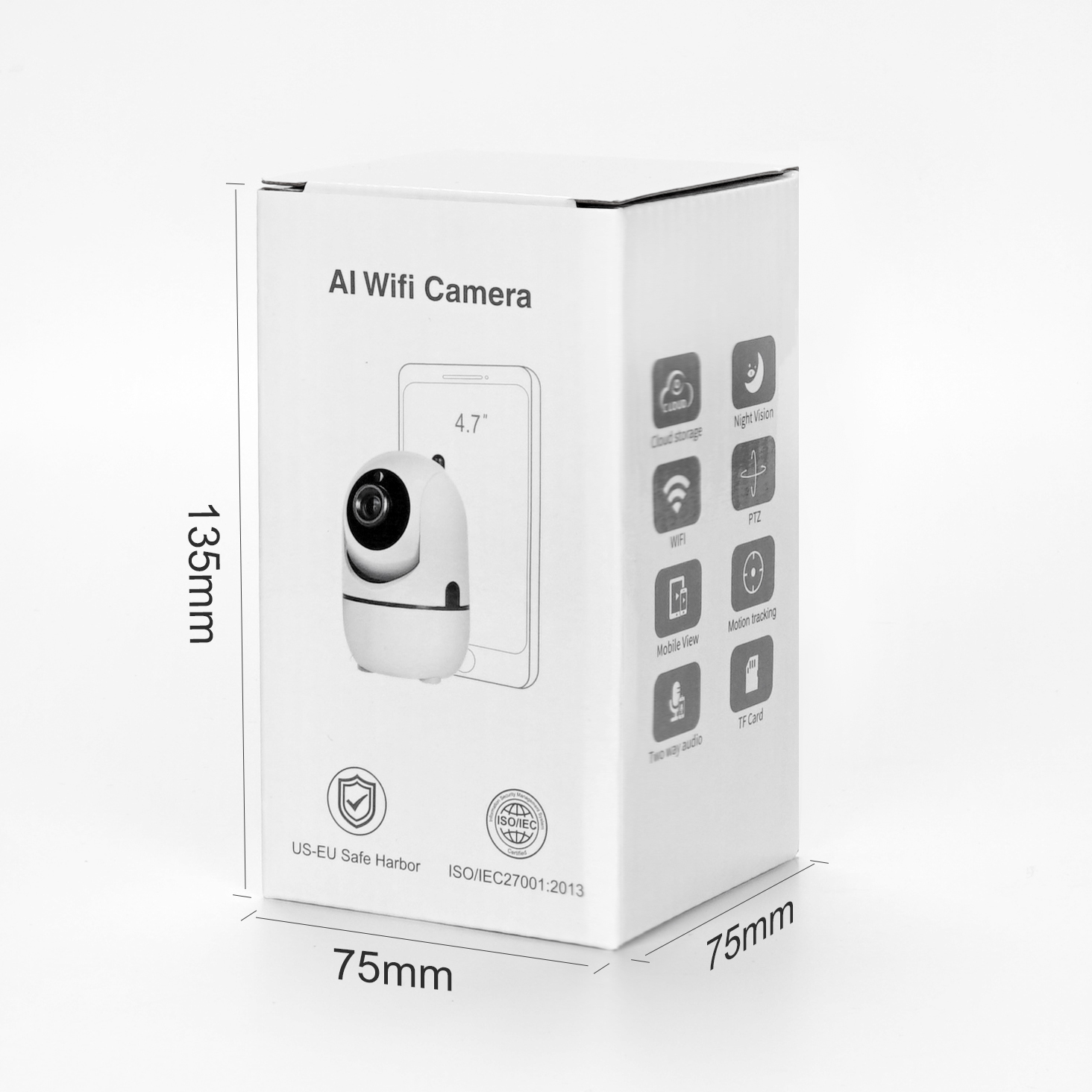

Dimension

65*105mm

Weight

0.2kg
