2 million cctv HD wifi camera 8 way remote wireless network monitoring equipment set

  • Model:NVRK0005
  • Description

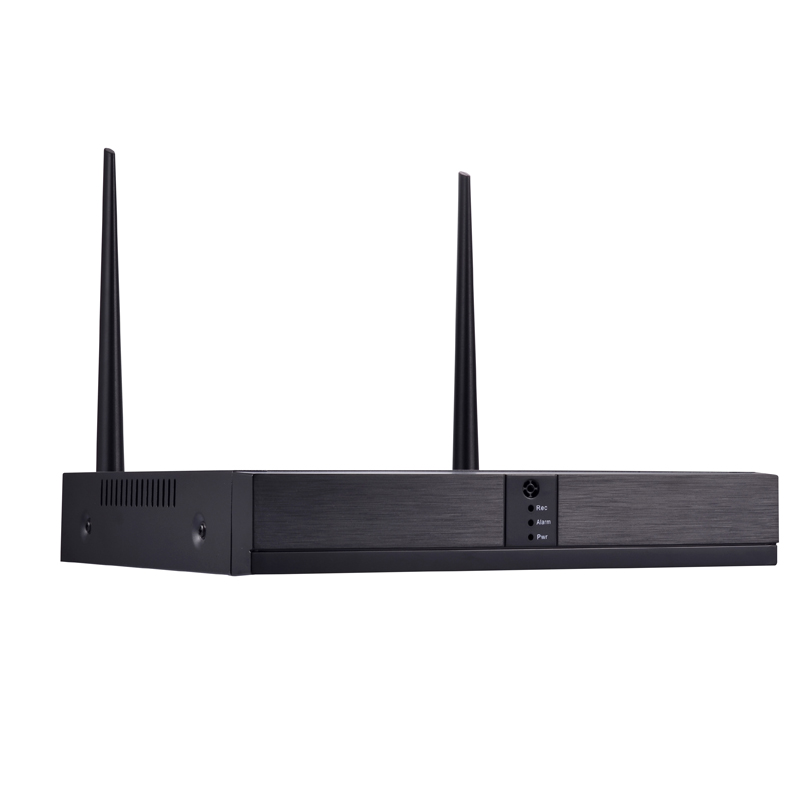

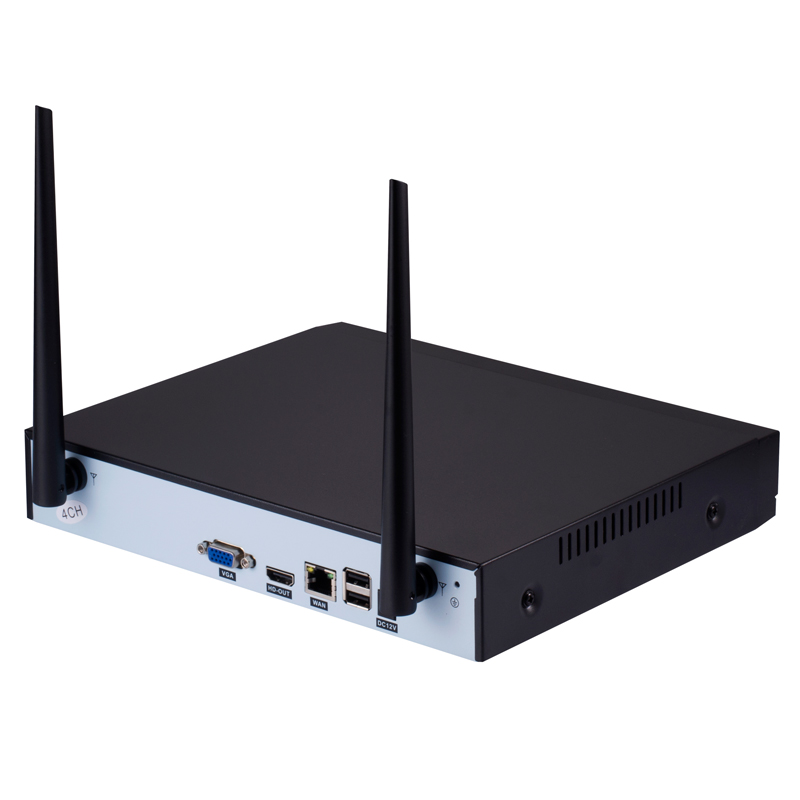

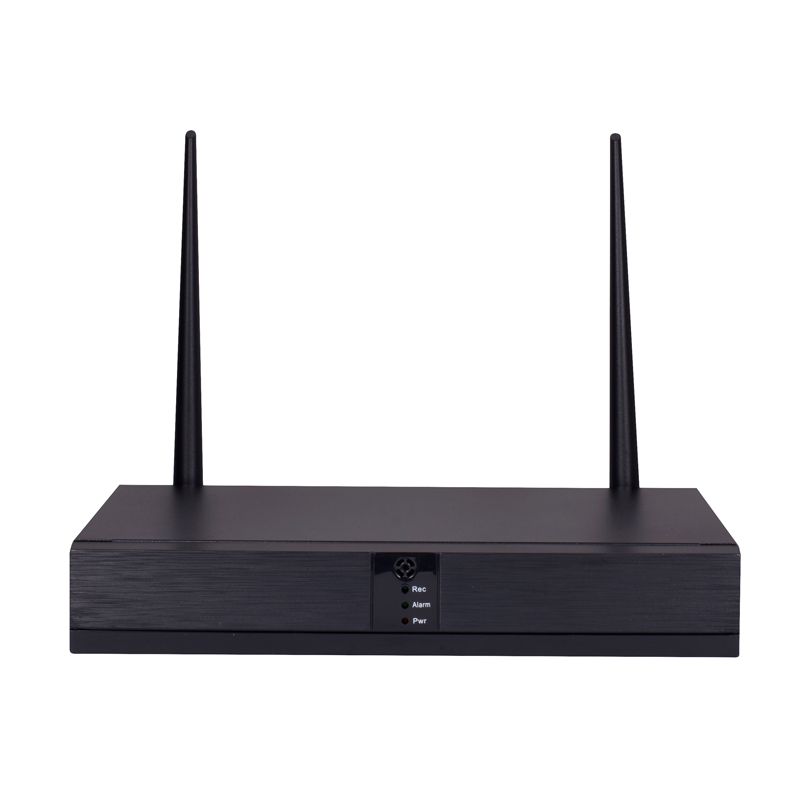

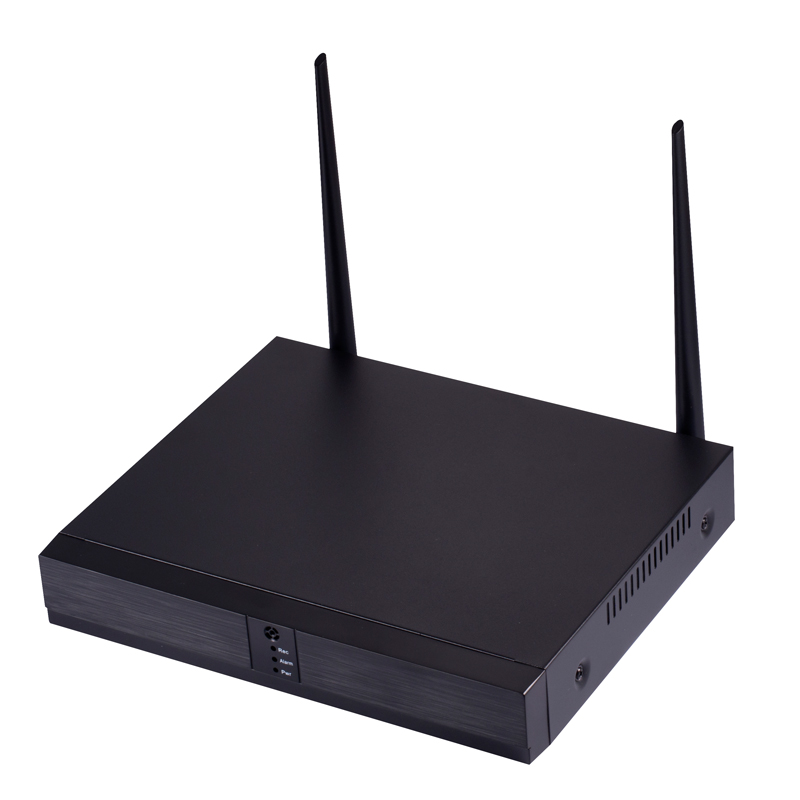

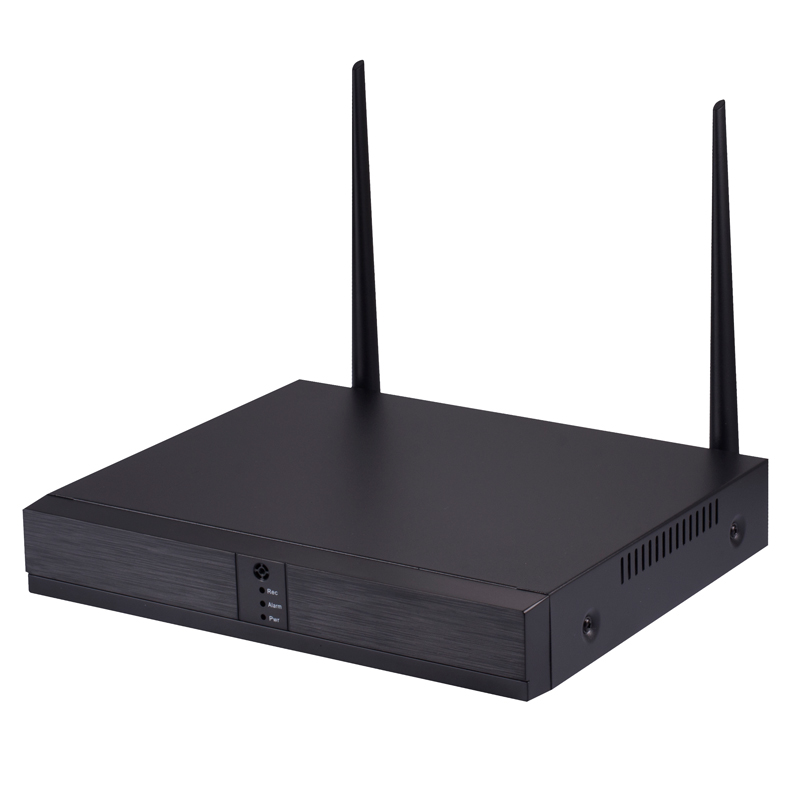

WiFi NVR Specification
Model NVRK0005
System Main processor Hi 3536D
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/4/8
Video input (IP) 8*1080P
Access bandwidth 24Mbps
Forwarding bandwidth 24Mbps
Video compression H.265+
Display quality Max 1080P
Playback quality 1080P
Decode 2*1080P
VR Unsupport
Motion detection Support(depend on camera)
Audio Audio compression G.711A
Intercom Unsupport
Record & playback Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback 2*1080P
Search mode Search by Time/Calendar/Event/Channel
Record storage HDDNetwork
Backup mode Network backup, USB hard disk, USB burner, SATA burner
External
Interface
Video output 1ch VGA1ch HDMI HD output
Audio I/O 0/0
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
USB interface 2*USB2.0 ports
HDD 1* SATA(Up to 8TB for each disk)
ESATA No
Serial interface No
Other ONVIF No
Power supply 12V/2A
Power Consumption <10W(Without HDD)
Work environment Temperature:0-55 , Humidity:10%90%RH , Atm:86kpa106kp
Dimension 254mm*215mm*42mm
Weight 1.05KG

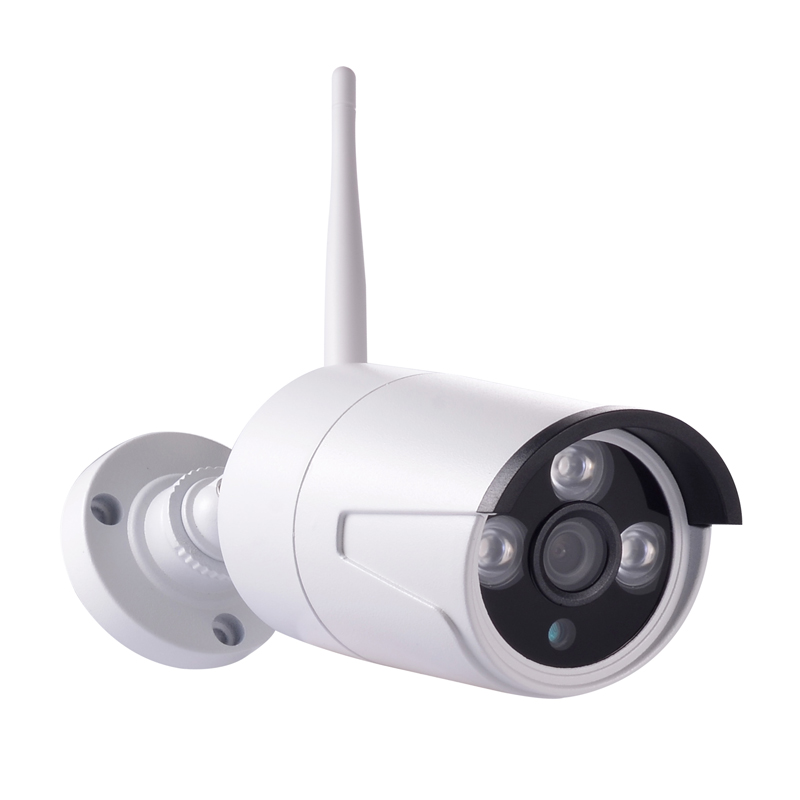

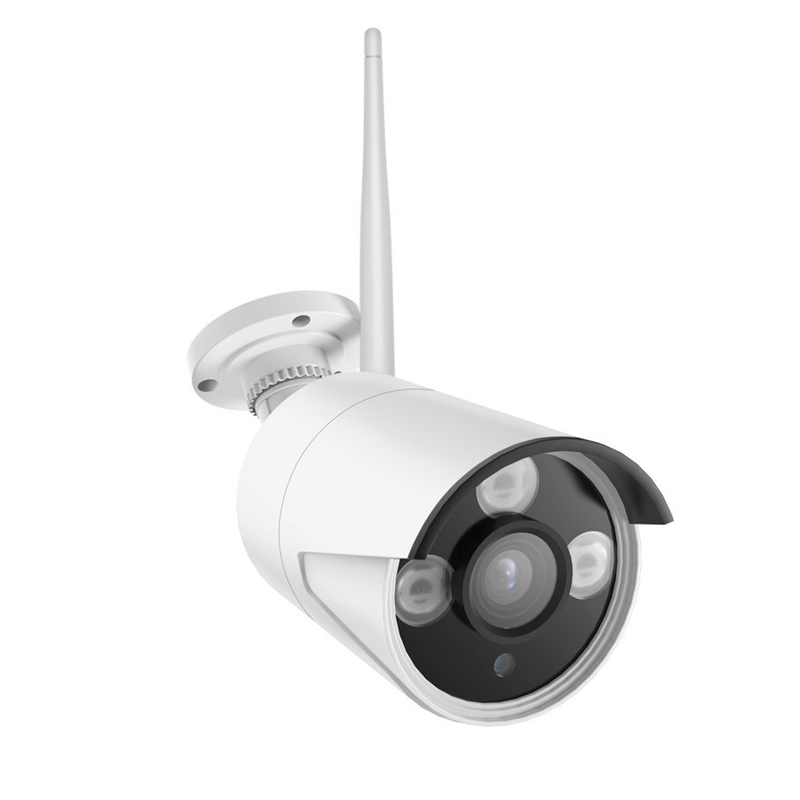

WiFi Camera Specification
Model NVRK0005
To configure Processor + sensor XM530 Ai+SC2235E 1/3" Progressive Scan Sensor
Low illumination Color: 0.1 Lux;  B/W: 0.01 Lux
Effective pixel HD 1080P
Lens HD lens 3.6MM
Infrared lamp 3pcs X 10 Lamp beads
Infrared distance 20~30 m
Day&night IR cut filter with auto switch
General setting Saturation, brightness and contrast ;
 are adjustable through IE browser or client software.
Video compression H.265+
temperature -10-60
humidity 10%-90% RH
Power supply DC12V 1A
Consumption  MAX 6W
Waterproof grade IP66
Dimension 180mm*62mm*60mm
Weight 0.35 kg
