Tuya 2MP Waterproof Wifi CCTV Video Smart Nvr IP Security Camera System With Google Home Alex
- Model：NVRK0011
Regis Tuya 2MP Waterproof Wifi CCTV Video Smart Nvr IP Security Camera System With Google Home Alex

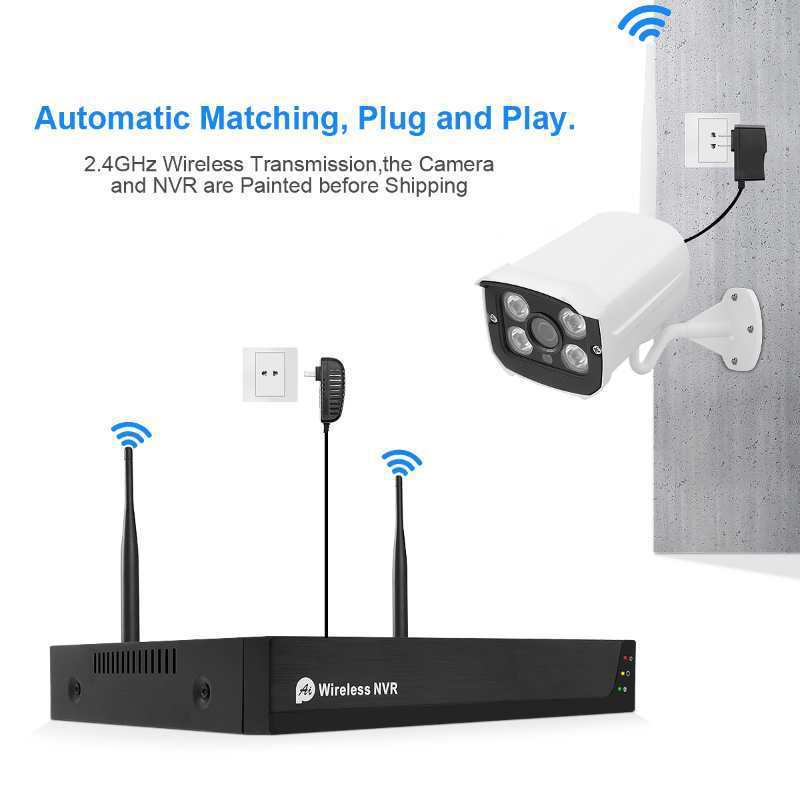

Features: Automatic Wireless Connection, plug and play
1080P H.265+ wireless network recorder and 8pcs 1080P wireless cameras
In open space without itrefere transmission distance up to 800 meters
Insert professional surveillance Wireless board, with stonger anti-interfere ability
One-push to configure
AI Human detection
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy to Install, User-Friendly Operation
|
IP Camera Specification:
|
|
|
Model name
|
2.0Mp Wireless IP Camera
|
|
Image sensor
|
1/2.9" 2.0M Pixel CMOS
|
|
Lens
|
4 mm, horizontal field of view: 75°
|
|
Lens Mount
|
M12
|
|
Min. Illumination
|
Color：0.01Lux@(F1.2，AGC ON)
B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) |
|
S / N ratio
|
≥39dB
|
|
Shutter speed
|
1/5 - 1/20,000s，
|
|
Day & Night
|
Day / Night / External control（IR Cut Filter）
|
|
AGC
|
Auto / Manual
|
|
White balance
|
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
Wide dynamic range
|
Digtal Wide dynamic range
|
|
Digital noise Reduction
|
2DNR,3DNR
|
|
Video Compression
|
H.265 Main Profile/H.264 Main Profile/M-JPEG
|
|
Audio Compression
|
G711，PCM
|
|
Max.Image Resolution
|
1920x1080@20fps
|
|
Image Resolution
|
Main stream （1920x1080、1280×960、1280×720、720×576、640×480）
|
|
|
sub-stream （640×480、352×288、320×240、176×144）
|
|
Bitrate
|
CBR/VBR, bitrate：32Kbps~10Mbps variable
|
|
Motion detect
|
Support
|
|
AI
|
Human detection
|
|
Privacy Zone Masking
|
4 privacy masks programmable
|
|
P2P
|
Android、IOS
|
|
Protocols
|
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
|
|
Onvif
|
Non- Support
|
|
Wireless
|
Frequency:2.4G
|
|
|
Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission
distance according to the situation |
|
Power
|
12VDC@0.12A
|
|
Working Temperature
|
-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)
|
|
NVR Specification:
|
||
|
Model
|
8CH Wireless HD-NVR
|
|
|
System
|
Main processor
|
Hi3536D
|
|
|
Operating System
|
Embedded Linux
|
|
Video
|
Video compression
|
H.265 High Profile/ H.264 Main Profile
|
|
|
Video output
|
720P60,XGA,1080P60
|
|
|
Video input(IP)
|
8*1080P/8*960P/8*720P
|
|
Audio
|
Audio compression
|
G.711
|
|
|
intercom
|
None
|
|
Record & playback
|
Recording mode
|
Manual/Alarm/Video Detection/Continuous
|
|
|
Local Playback
|
1*1080P
|
|
Storage & Backup
|
Record Storage
|
network
|
|
|
Backup mode
|
Network backup, USB hard disk
|
|
Network Control
|
Protocol
|
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
|
|
Wireless
|
Frequency
|
2.4G
|
|
|
Antenna Structure
|
2 × 2MIMO
|
|
|
Distance
|
More than 800 meters with no obstacle，more than 30 meters if penetrate the wall，the actual transmission distance according to the
situation |
|
Interface
|
Video output
|
1ch HDMI, 1ch VGA output
|
|
|
Audio I/O
|
None
|
|
|
Alarm I/O
|
None
|
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
|
USB
|
2*USB 2.0 port
|
|
|
Hard disk
|
1 SATA(Up to 4TB)
|
|
Oter |
Power supply
|
DC +12V /3A
|
|
|
Power Consumption
|
5W（Without HDD）
|
|
|
Work environment
|
Temperature:-10℃－＋55℃, Humidity:10%-90%RH
|
