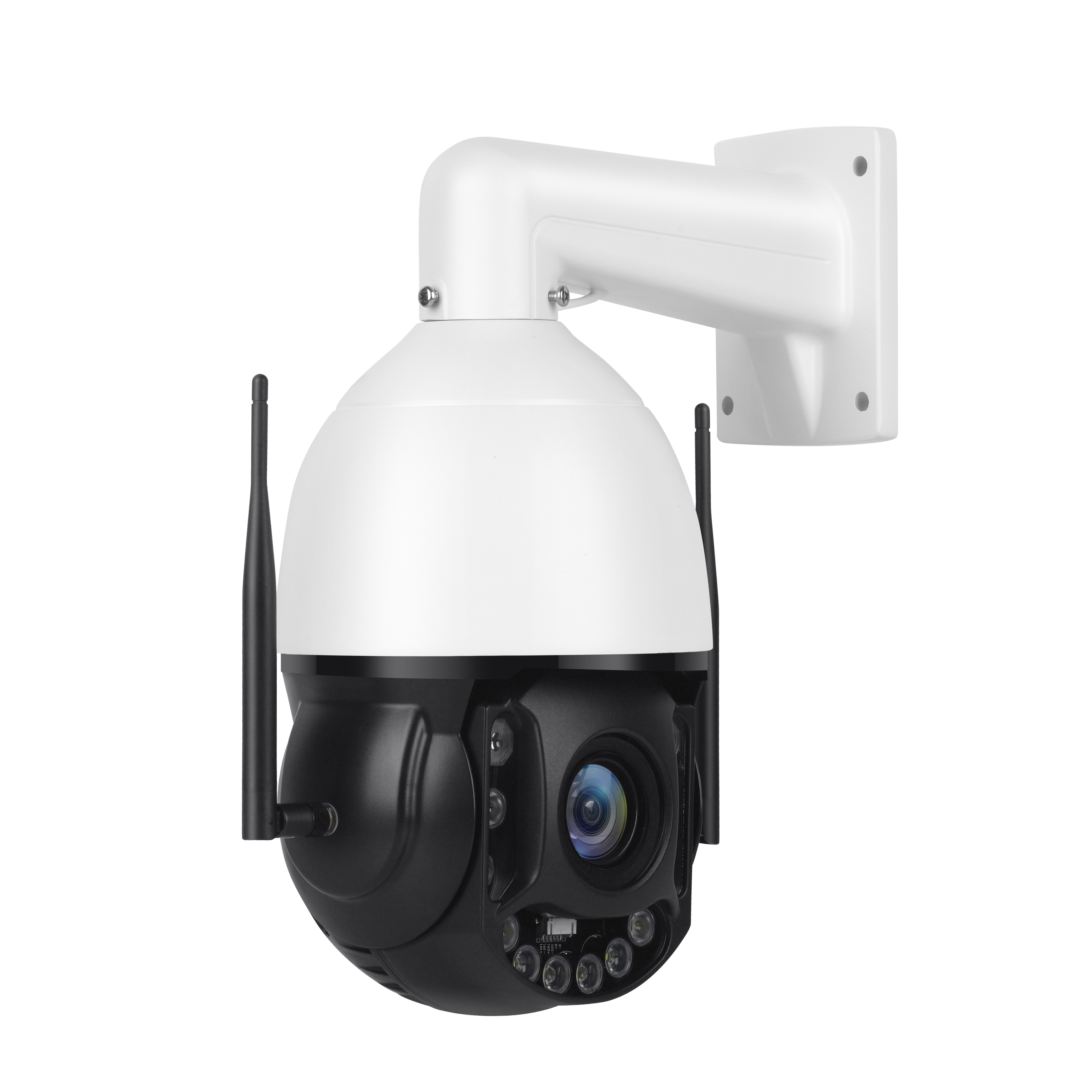

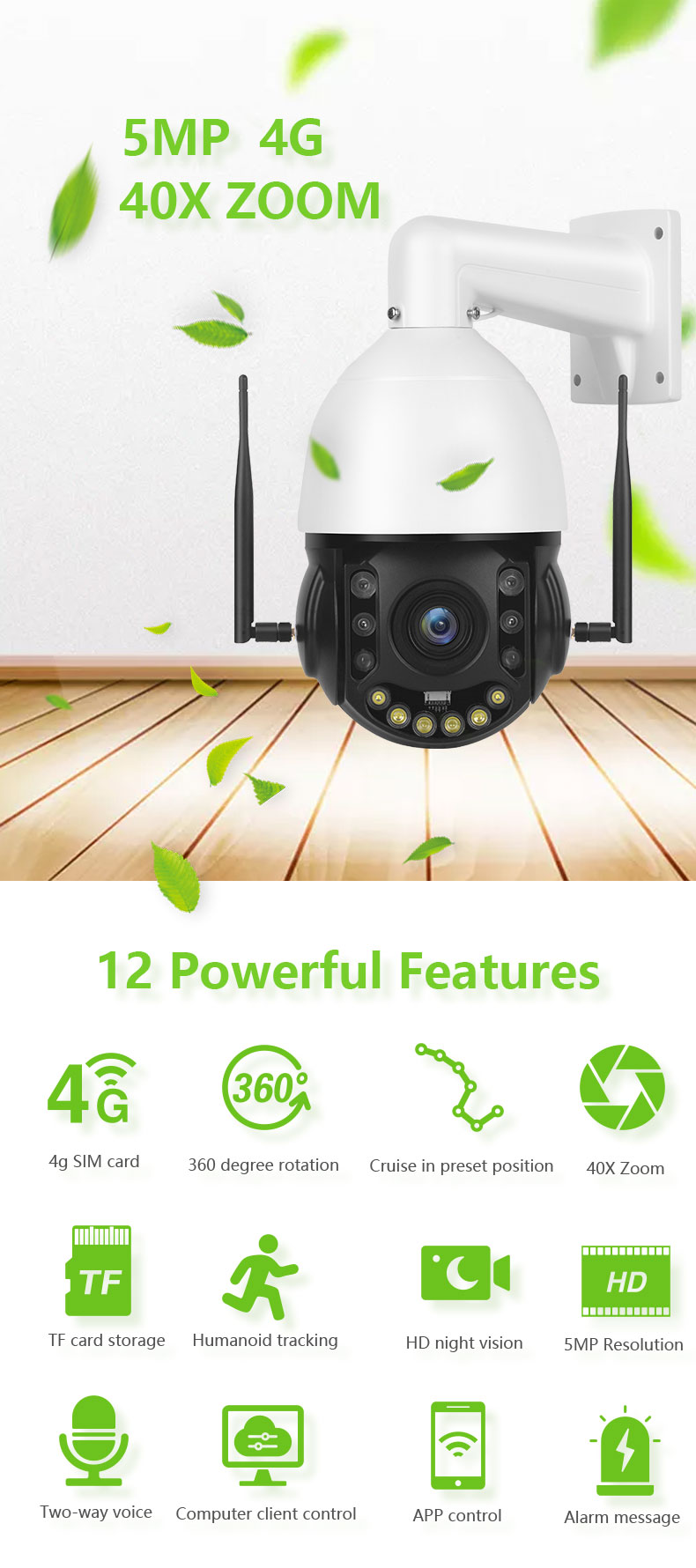

4G Sim Full Color 2MP PTZ 40X Optical Zoom Wireless Outdoor Wifi IP CCTV 5MP Security Cameras
- Model：IPCM0288
|
Simple Specification:
|
|
|
2mp 4G 40X
|

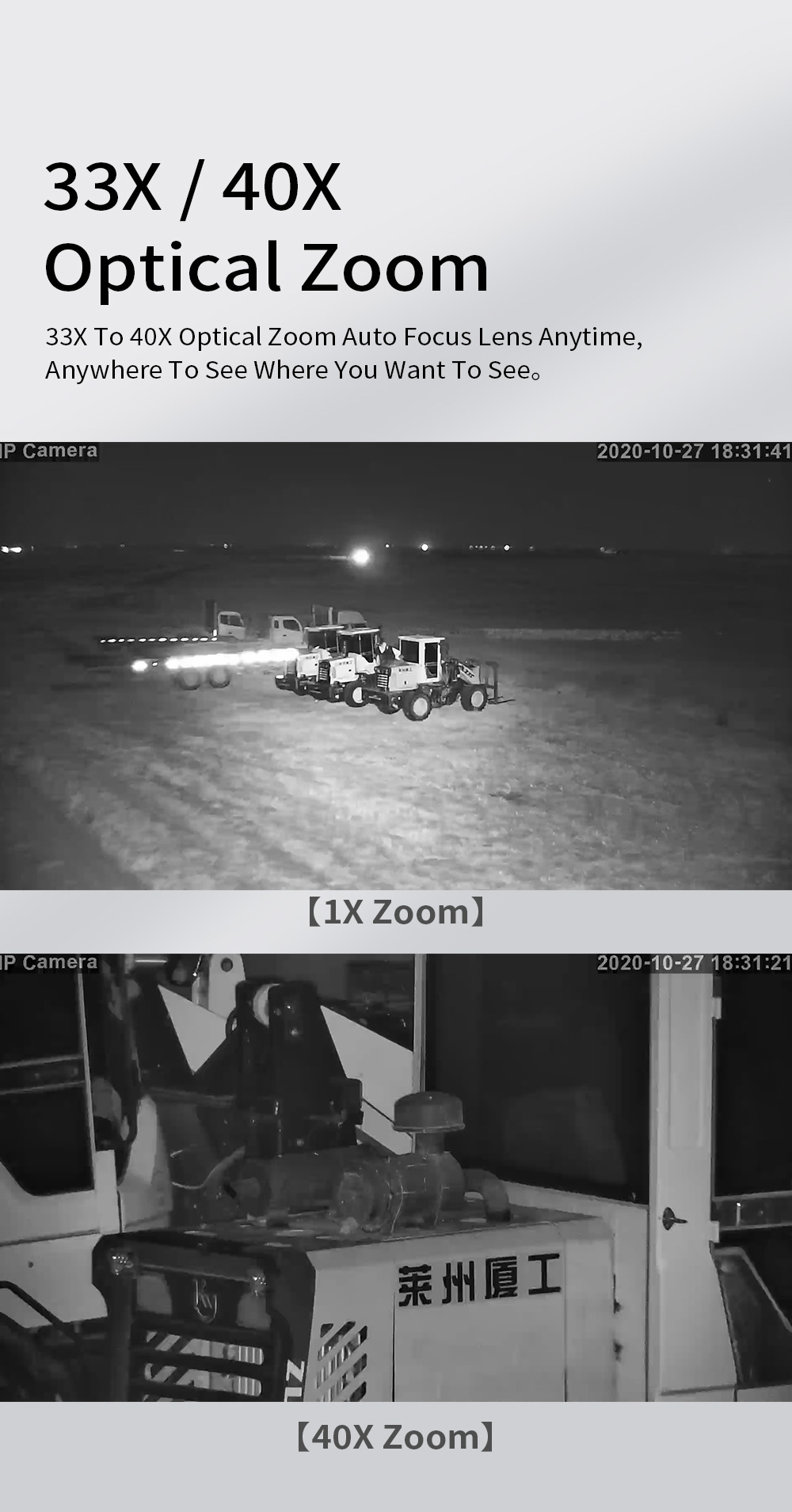

1080P starlight level dual light source, HI3516EV200+IMX307, 1/2.8'' CMOS, 2 infrared, 4 laser light infrared distance 300 meters, 6 white light distance up to 80 meters, support 360 degree rotation, the maximum speed can reach 60 degrees /S, support presets and cruise, lens 5.3-96MM, 40X optical zoom, support voice alert, support humanoid detection, IP66 waterproof rating
|
|
5mp 4G 40X
|
5MP starlight level dual light source, HI3516EV300+IMX335, 1/2.8'' CMOS, 2 infrared, 4 laser light infrared distance 300 meters, 6 white light distance up to 80 meters, support 360 degree rotation, the maximum speed can reach 60 degrees /S, support presets and cruise, lens 5.3-96MM, 40X optical zoom, support voice alert, support humanoid detection, IP66 waterproof rating
|
|
Specification 1:
|
|
|
Control speed
|
horizontal speed 0.01°～300°/S, vertical speed 0.01°～240°/S, 256 levels of subdivision, three speeds adjustable
|
|
Rotation range
|
horizontal 355° unlimited rotation, vertical 0°～90° automatic flip.
|
|
Communication protocol
|
PELCO-D/-P adaptive
|
|
Baud rate
|
2400bps/ 4800bps/ 9600bps adaptive
|
|

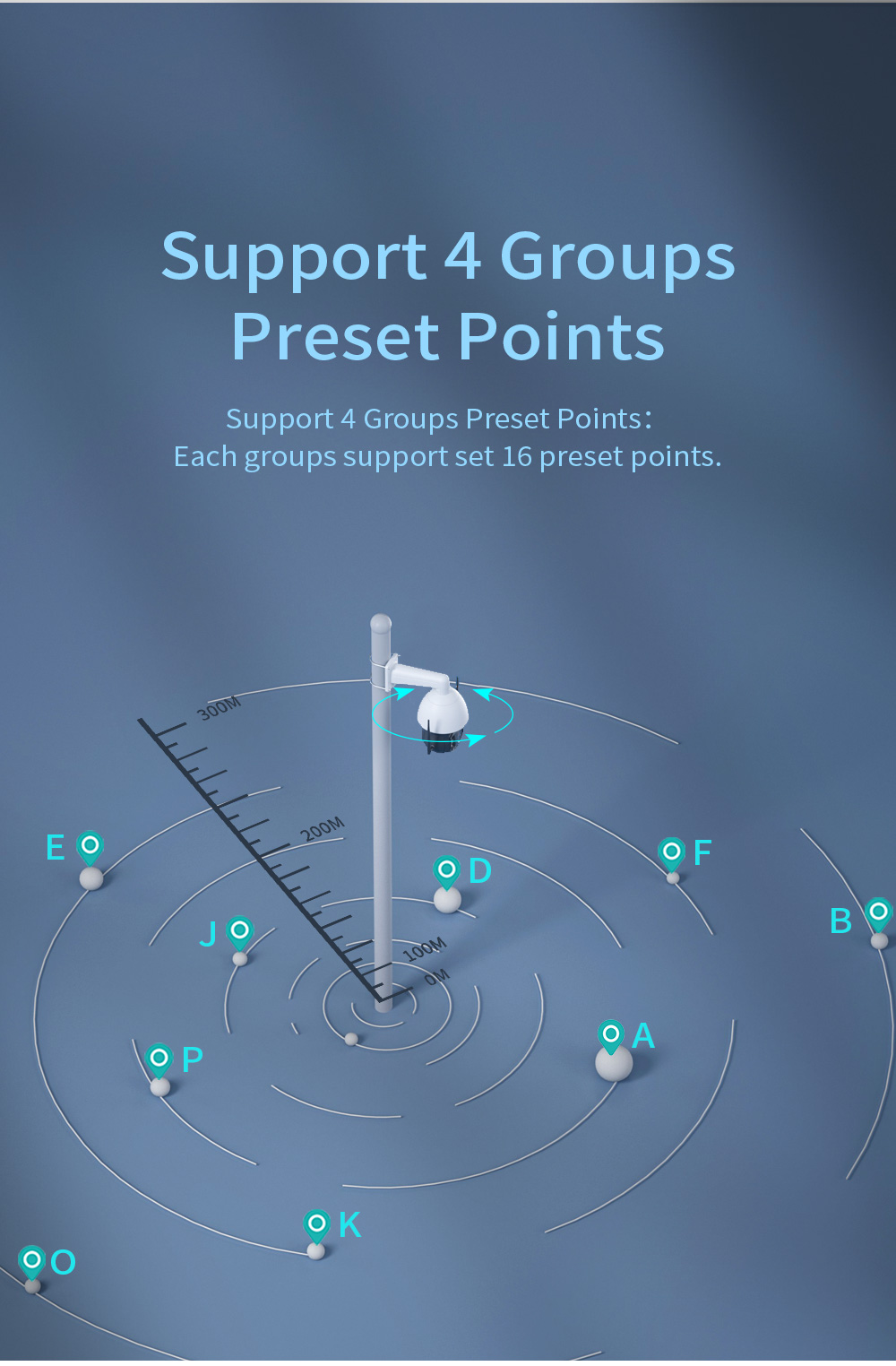

Preset position
|
256 preset points, preset point accuracy <±0.1°
|
|

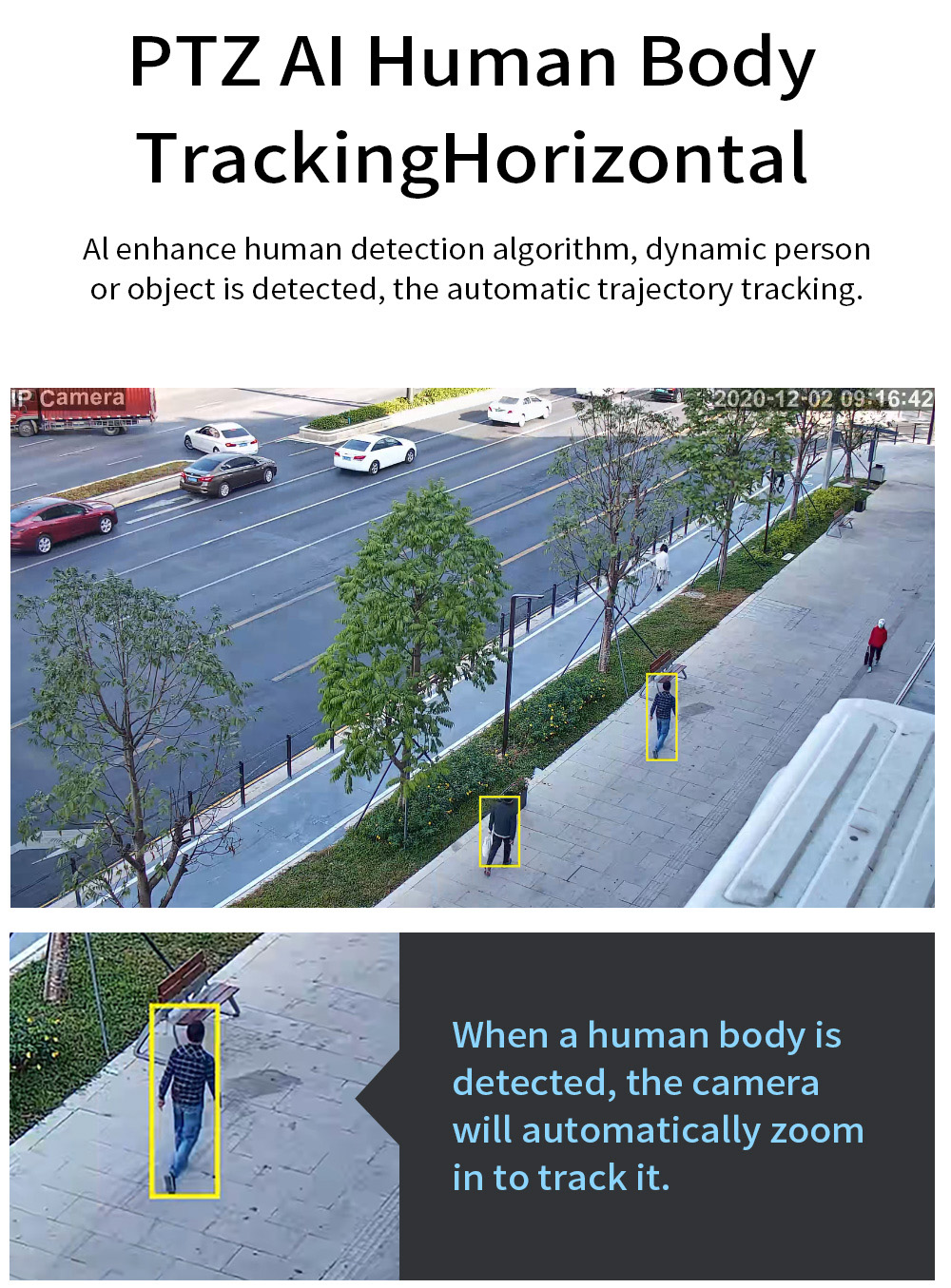

Tracking function
|
multiple scenes
|
|
Timing function
|
turn on and off the infrared light, track timing, pattern scanning, cruise route timing and other functions
|
|
Time & Date
|
Can be displayed or not
|
|
Cruise scan
|
4 groups of pre-positioned cruise routes
|
|
Pattern scanning
|
3D coordinate positioning, 4 patterns scanning
|
|

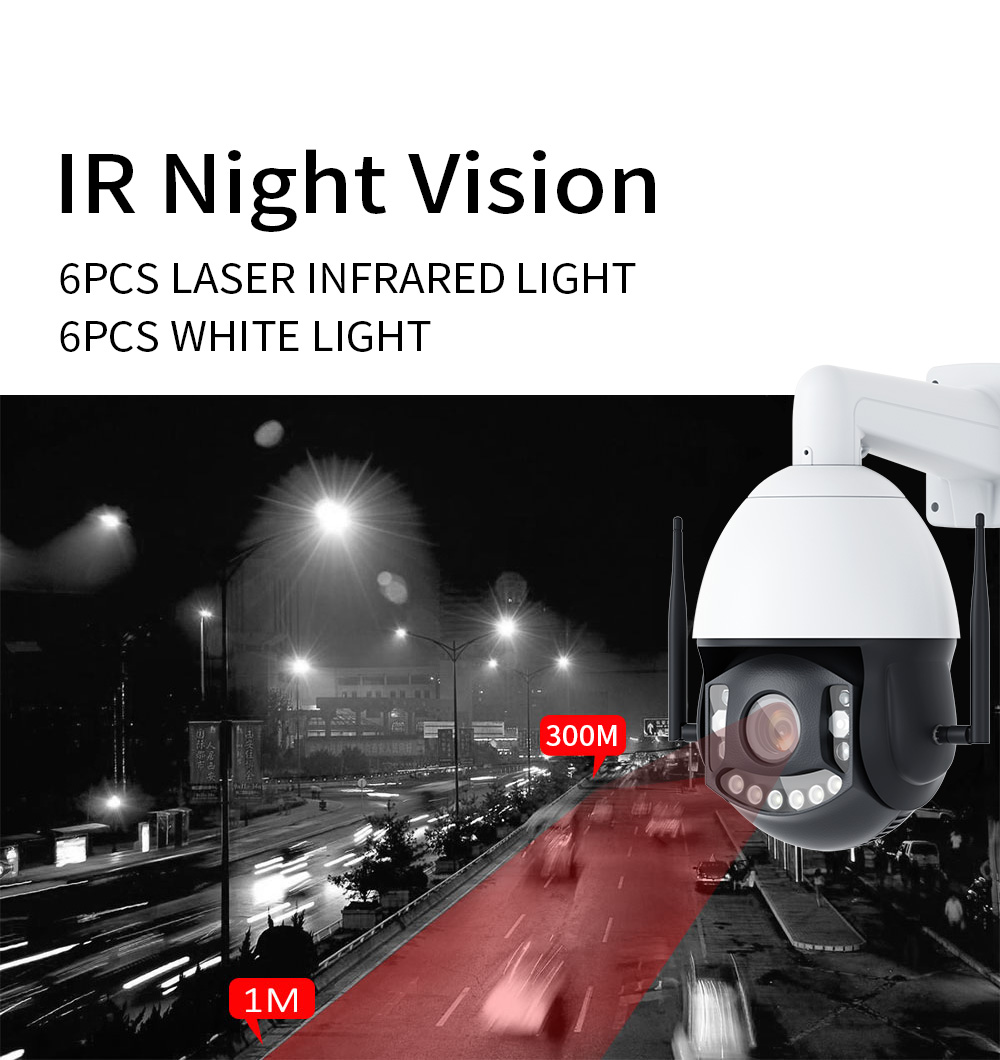

Night vision distance
|
3 sets of LED constant current drive; adopts 6 fifth-generation dot matrix high-brightness wicks, hidden design, night vision
distance up to 80 meters |
|
Processor
|
The main frequency is 80MHZ 32-bit ARM high-speed processor
|
|
Infrared far light switch
|
user can customize according to different scenes
|
|
Installation method
|
wall mounting/hung mounting bracket optional
|
|
Power supply
|
DC12V 4A
|
|
Specification 2:
|
|
|
Internet function
|
|
|
WIFI
|
Built-in WIFI access, support AP mode and direct connection to mobile phone
|
|
Image settings
|
The function of the movement can be adjusted through the client or IE browser
|
|

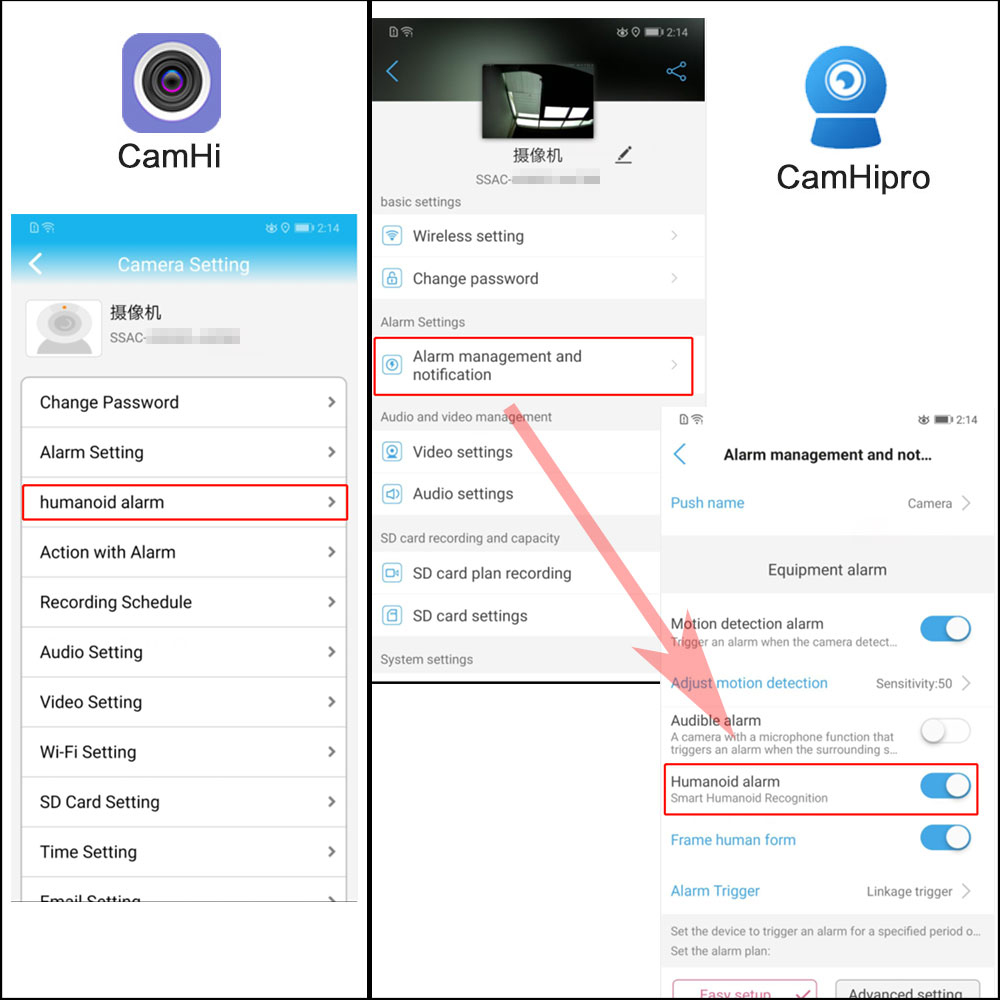

Smart alarm
|
motion detection, occlusion alarm, memory full, memory error
|
|
Support protocol
|
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
|
|
Interface protocol
|
ONVIF, CGI
|
|
Three streams
|
1080P+VGA+QVGA
|
|
Security mechanism
|
password protection, multi-user access control
|
|
General specification
|
|
|
Power supply
|
DC12V±10%
|
|
Temperature and humidity
|
-20℃ ~ 60℃, less than 90%RH
|
|
Power consumption
|
static power consumption
|
|
Size
|
50×60×88mm
|
|
Weight
|
2.5KG
|
