Tuya 10.1" 3MP HD LCD Monitor Screen Wifi Security IP CCTV NVR Kit Home Alarm System

  • Model：NVRK0023
  • Description
Tuya 10.1" 3MP HD LCD Monitor Screen Wifi Security IP CCTV NVR Kit Home Alarm System Wireless With Cameras

Features:
>Automatic Wireless Connection, plug and play
>3MP H.265+ wireless network recorder and 4 3MP wireless cameras
>In open space without itrefere transmission distance up to 200 meters
>Insert professional surveillance Wireless board, with stonger anti-interfere ability
>One-push to configure
>Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
>AI Human detection
>Support Android/Apple cell phone or pad by LAN & WAN visit and control
>P2P IP PRO, fluent and fast remote access
>Suit to homes, offices, small businesses & retail stores
>Easy to Install, User-Friendly Operation
Product Description

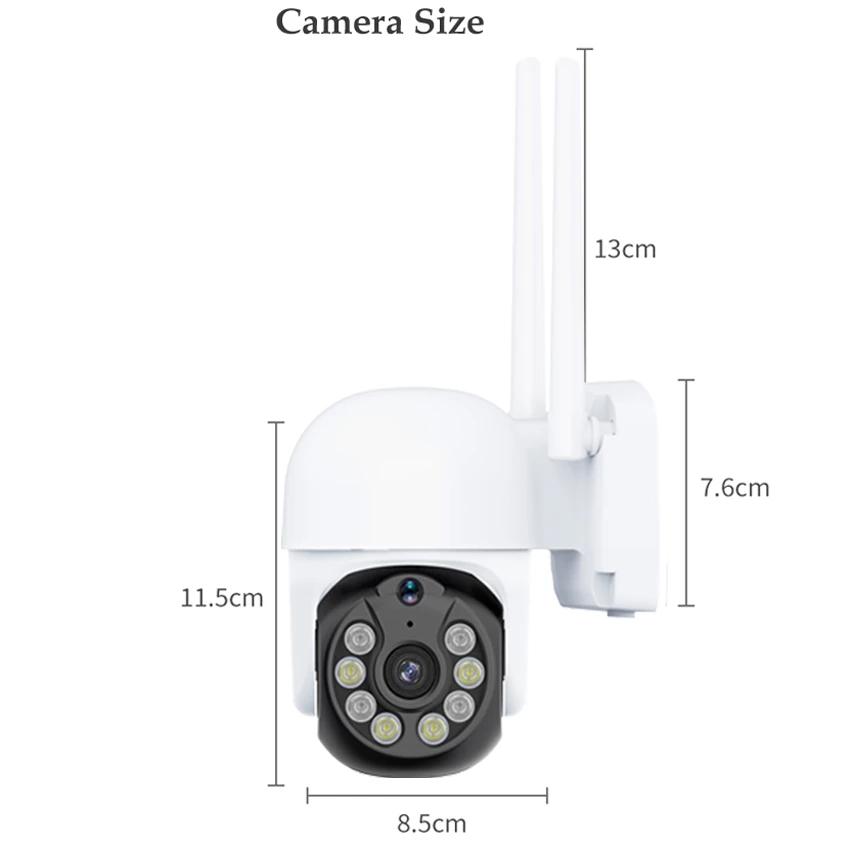

Camera Specification:
Camera Spec
3.0MP Wireless
IP PTZ Camera
Camera number
4pcs
Max.Image
Resolution
1920x1080@20fps
Image Resolution
Main stream（1920x1080、1280×960、1280×720、720×576、640×480）
sub-stream（640×480、352×288、320×240、176×144）
Image sensor
1/2.9" 2.0M
Pixel CMOS
Min. Illumination
Color：0.01Lux@(F1.2，AGC ON)
B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON)
S / N ratio
≥39dB
Shutter speed
1/5 - 1/20,000s，
Day & Night
Day / Night /
External control（IR Cut Filter）
AGC
Auto / Manual
White balance
Auto/Manual /ATW/Indoor/Outdoor/Daylight
lamp/Sodium lamp
Wide dynamic
range
Digtal Wide
dynamic range
Digital noise
Reduction
2DNR,3DNR
Video
Compression
H.265 Main
Profile/H.264 Main
Profile/M-JPEG
Audio
Compression
G711，PCM
Bitrate
CBR/VBR, bitrate：32Kbps~10Mbps variable
Motion detect
Support
AI Feature
Human detection
Privacy Zone
Masking
4 privacy masks
programmable
P2P
Android、IOS
Protocols
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Onvif
Non- Support
Wireless
2.4G Frequency
Transmission
distance :More than
800 meters with no obstacle，More than 30
meters if penetrate the
wall，The actual transmission distance
according to the situation
Power
12VDC@0.12A
Dimensions
38x38x5mm
Working
Temperature
-20°C ~50°C,
Humidity≤90%RH

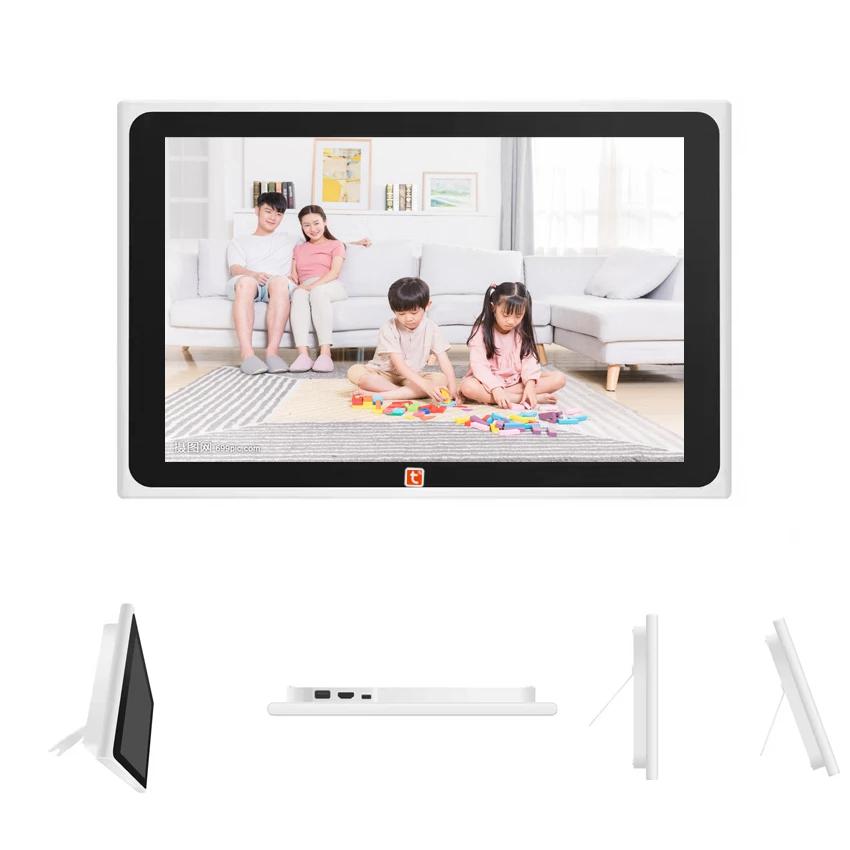

NVR and Monitor Specification:
Monitor
10 inch LCD
screen
NVR Spec
Operating
System
Embedded Linux
Video
Video
compression
H.265 High
Profile/ H.264 Main
Profile
Video output
720P 60,XGA,1080P
60
Video input(IP)
4*3MP/4*1080P/4*720P
Audio
Audio
compression
G.711
intercom
None
Record &
playback
Recording mode
Manual/Alarm/Video
Detection/Continuous
Local Playback
1*1080P
Storage &
Backup
Record Storage
network
Backup mode
Network backup,
USB hard disk
Network Control
Protocol
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
Wireless
Frequency
2.4G
Antenna
Structure
2 × 2MIMO
Distance
More than 50
meters with no
obstacle，more than 30 meters if penetrate the
wall，the actual transmission distance
according to the situation
Interface
Video output
1ch HDMI, 1ch VGA
output
Audio I/O
None
Alarm I/O
None
Network
interface
1*RJ45 10M/100M
Adaptive Ethernet
port
USB
2*USB 2.0 port
Hard disk
1 SATA(Up to 6TB)
Other
Power supply
DC +12V /3A
Power
Consumption
5W（Without HDD）
Work environment
Temperature:-10℃－＋55℃, Humidity:10%-90%RH
