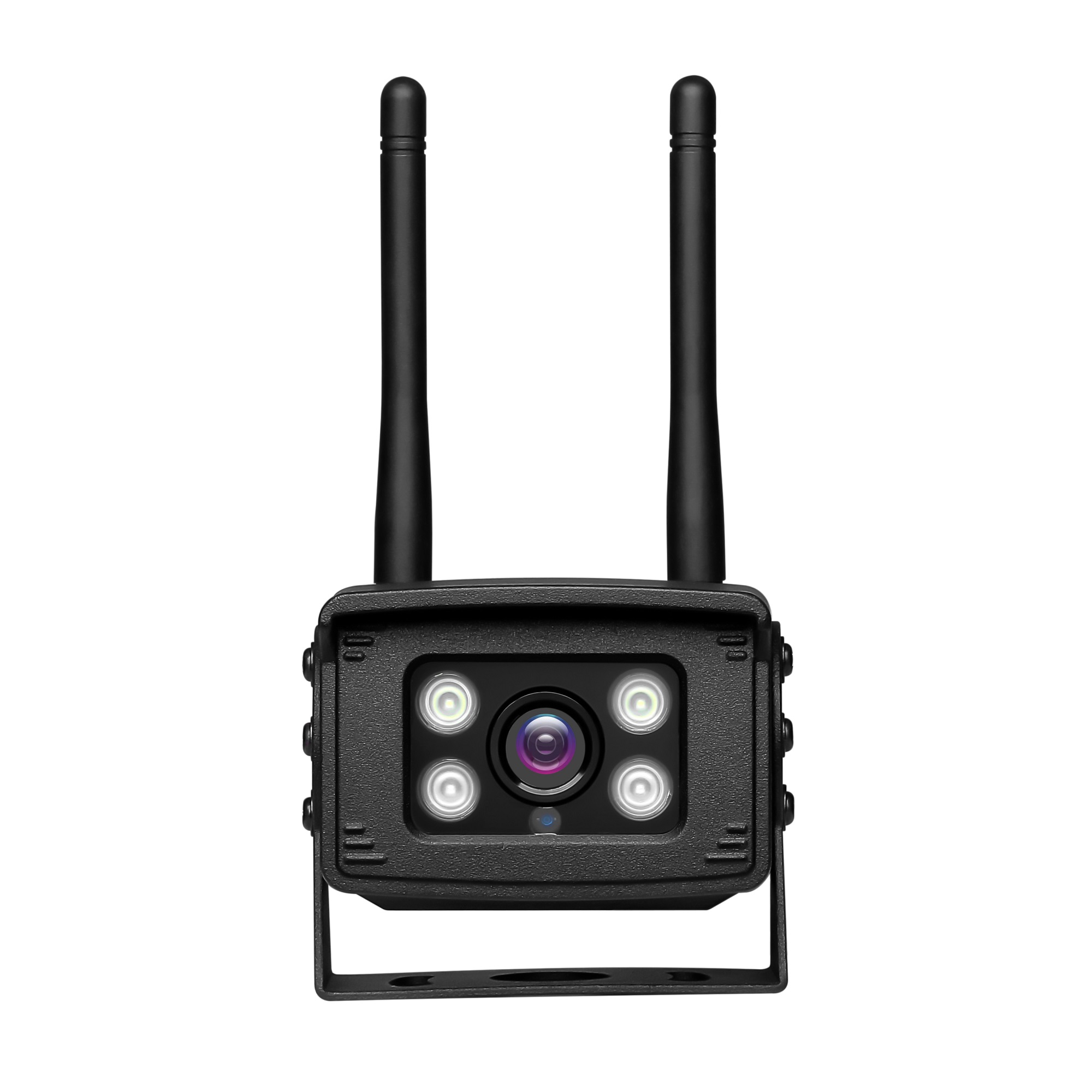

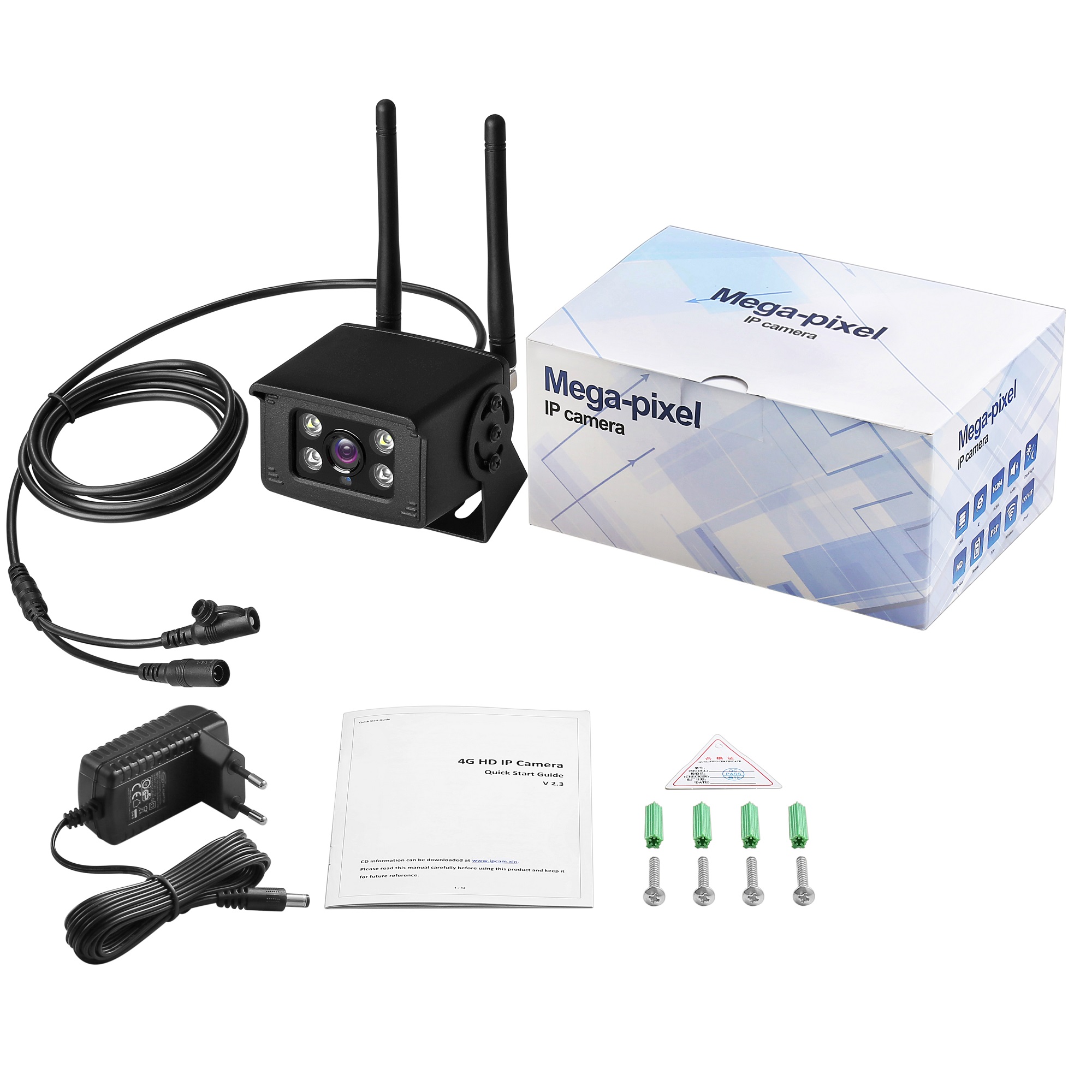

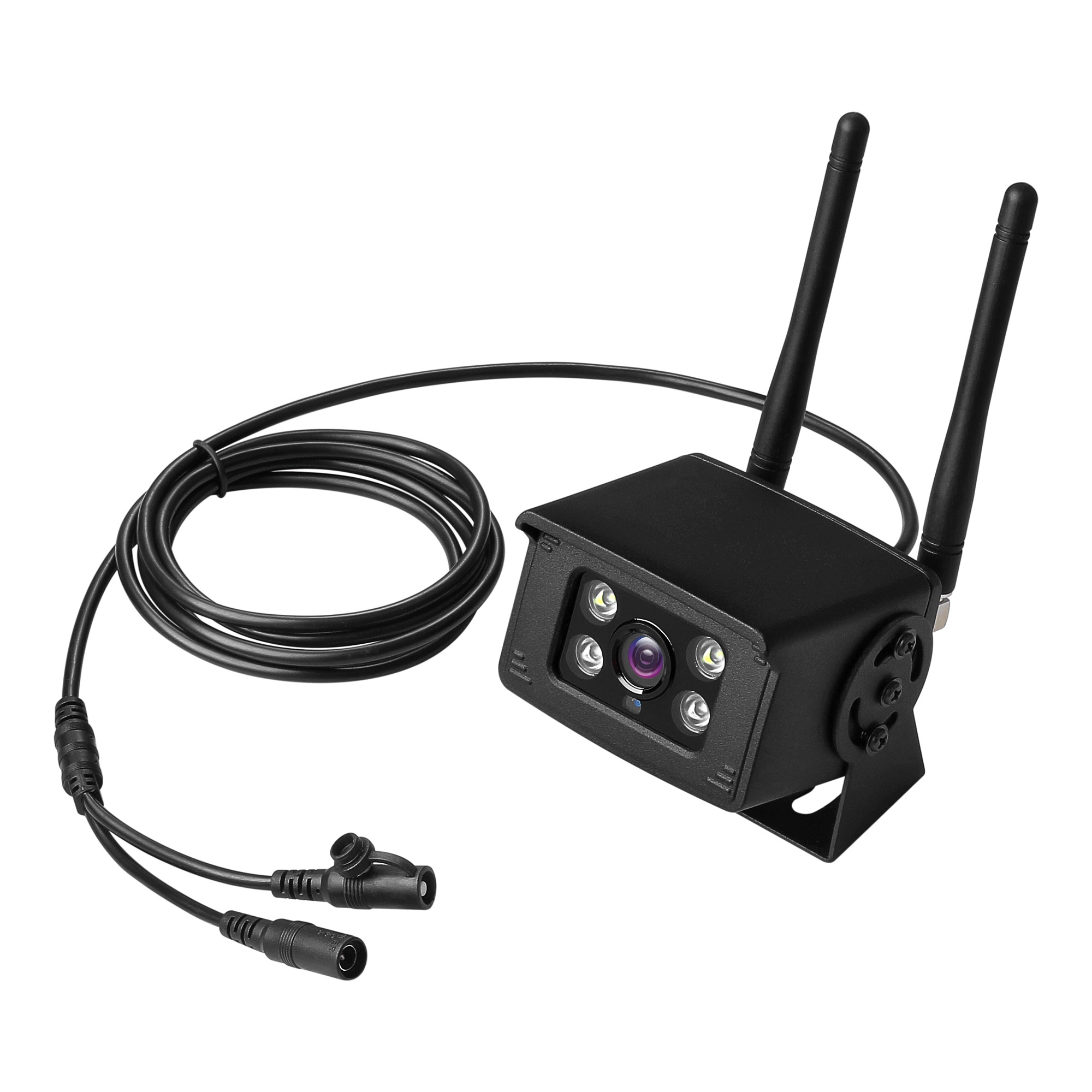

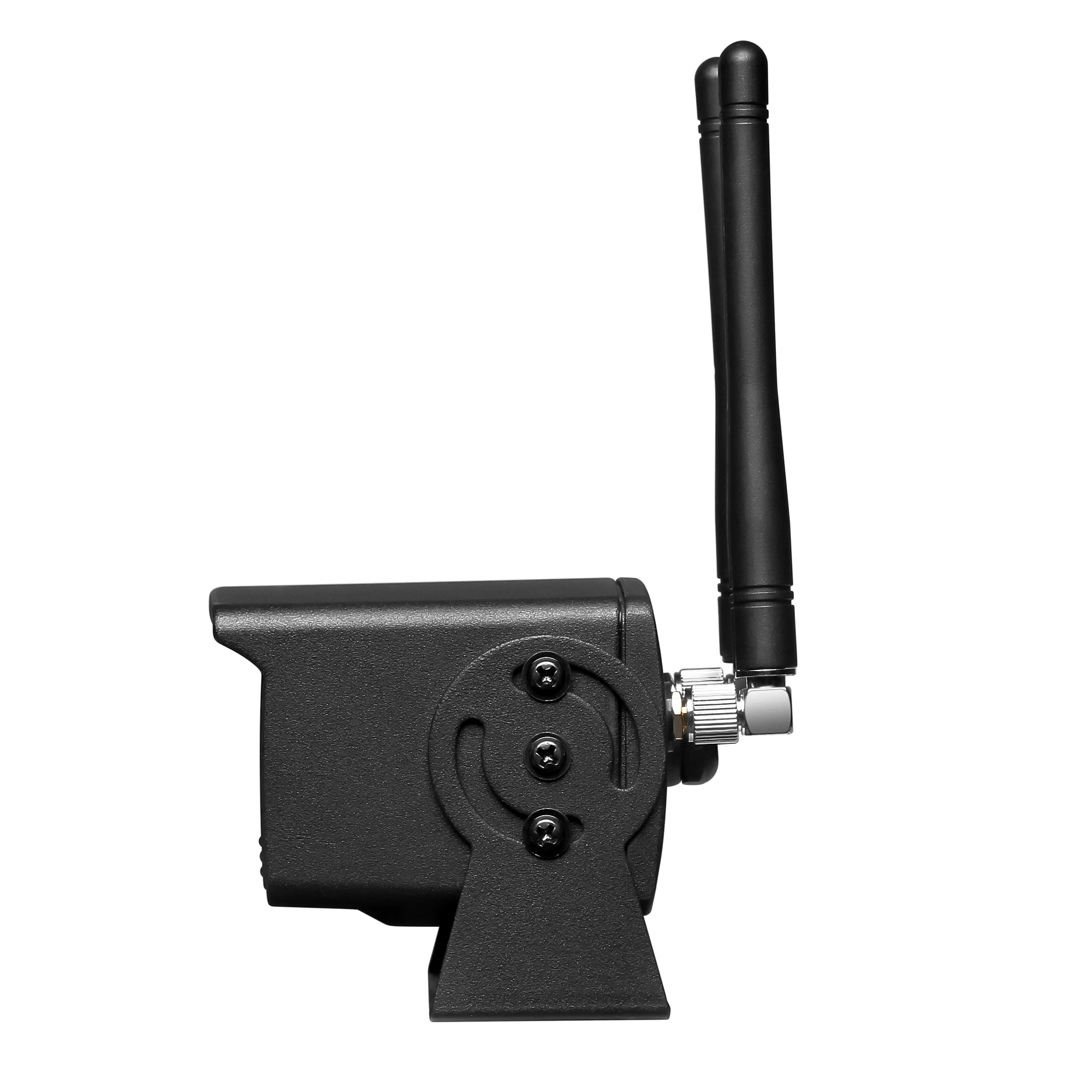

Camhi 5MP 4G Full Color Night Vision Mini Waterproof IP66 Network IP Camera For Motor Vehicle Truck
- Model：IPCM0312
Camhi App 5MP 3G 4G Full Color Night Vision Mini Waterproof IP66 Network IP Camera For Motor Vehicle Truck
1. Features
5.0 megapixel HD 3G/4G IP camera, maximum resolution 2560x1920;
High-performance main control chip, good picture quality, support humanoid detection alarm;
Support 3G/4G, support AP mode;
Support up to 128G TF card storage;
Built-in MIC and speakers, support two way audio;
Waterproof level IP66;
3.6mm lens;
4pcs array infrared LEDs, night vision distance 25m;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
2. Specifications
|
Model |
NC08G-EU |
|
|
Video |
Sensor |
5.0 megapixel 1/2.7" SC5238 CMOS |
|
Video resolution |
Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps |
|
|
Video compression |
H.264/H.265 |
|
|
Lens |
3.6mm lens |
|
|
View angle |
86.1° |
|
|
Night vision |
4pcs array infrared LEDs, night vision distance 25m |
|
|
Audio |
Audio compression |
G.726/G.711 |
|
Audio code rate |
8Kbps, 16bit |
|
|
Audio input/output |
Built-in MIC and speakers, support two way audio |
|
|
Alarm |
Motion detection |
Can set 4 independent detection areas, can set the sensitivity of 1-100 |
|
Humanoid detection |
Support, can be used in conjunction with motion detection to make the alarm more accurate |
|
|
Alarm linkage |
Alarm mobile phone message push, Alarm recording or capture to Micro SD card, Alarm trigger sound alarm,
Alarm capture sent to Email, |
|
|
Alarm time |
All day or manually customize alarm time period |
|
|
Interface |
Power |
5.5*2.1mm power interface |
|
Reset button |
Support, press for 5 seconds to reset the camera |
|
|
Micro SD card |
Support up to 128G micro SD card |
|
|
3G/4G |
3G standard |
WCDMA |
|
3G frequency range |
B1(2100MHz), B8(900MHz) |
|
|
4G standard |
FDD-LTE/TDD-LTE |
|
|
4G frequency range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) |
|
|
Interface type |
Micro SIM card, Plug and play, no need to set |
|
|
General specification |
Power consumption |
Day: 5W, Night: 9W |
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing |
|
|
Shell material |
Metal shell |
|
|
Waterproof level |
IP66 |
|
|
Product size |
70mm×60mm×55mm(L×W×H) |
|
|
Product weight |
0.4kg |
|
|
Package size |
190mmx130mmx90mm(L×W×H) |
|
|
Package weight |
0.55kg |
|
